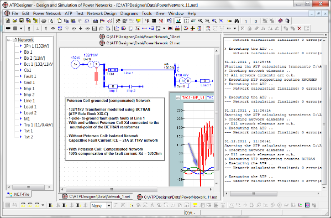

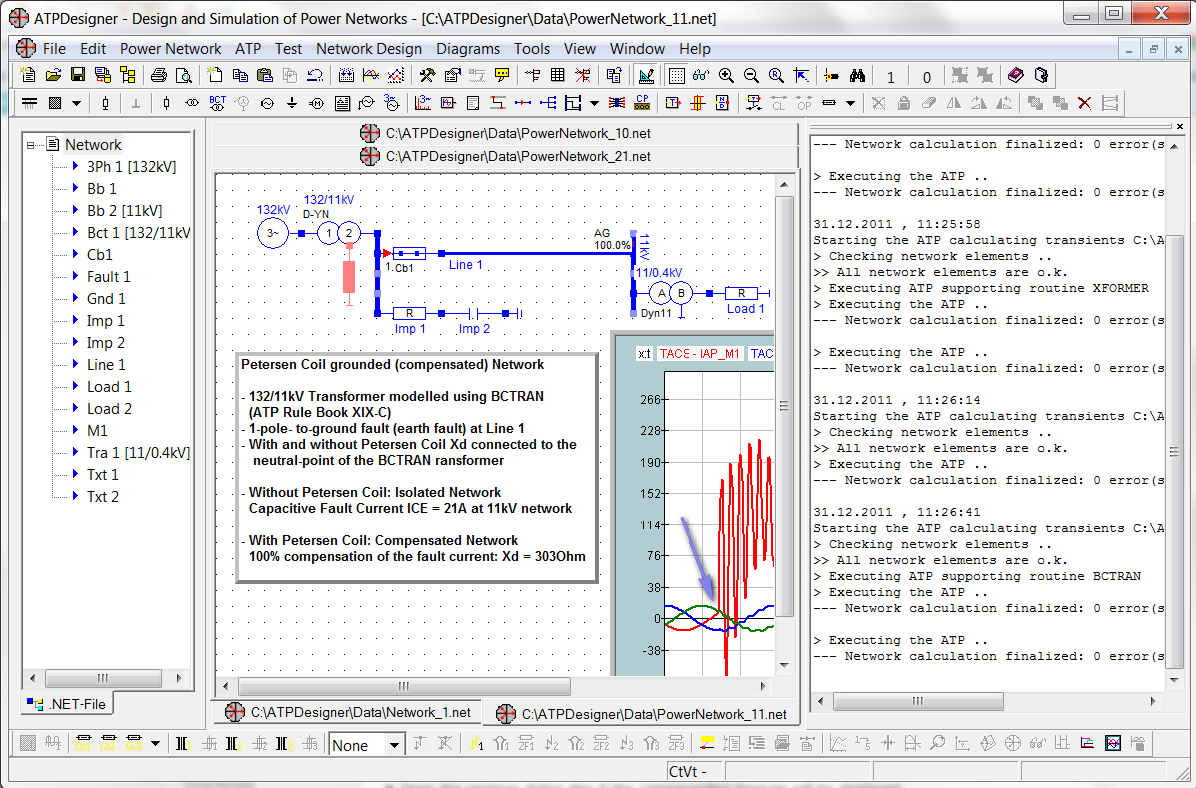

User Interface

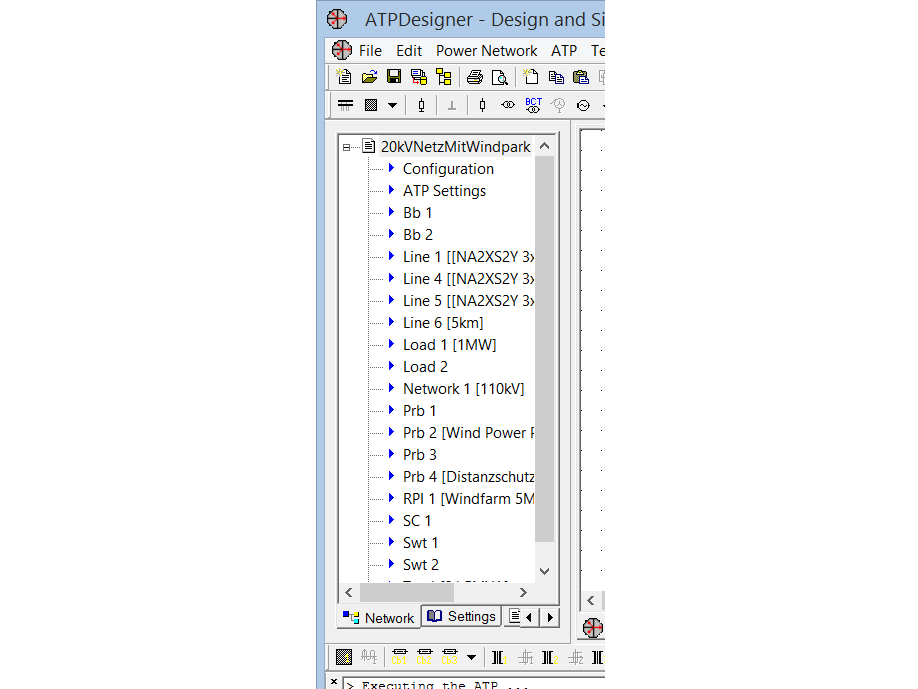

• Displays all network elements, which are used by the visible power network

• Open the settings dialog by a Left Mouse Double-Click on the corresponding tree item
• Open the settings dialog also, if the corresponding Diagram will be displayed
• Start the network calculation process if the Diagram will be displayed

• Errors and messages will be now displayed in the new Messages Window if enabled. If disabled all errors and messages will be displayed in message boxes as well known from ATPDesigner.

• Opening and closing time of the switches or circuit-breakers of the Protection Relays
• Results of the Short-Circuit Analysis
• Results of the IEC 60909 (VDE 0102) based Short-Circuit Calculation

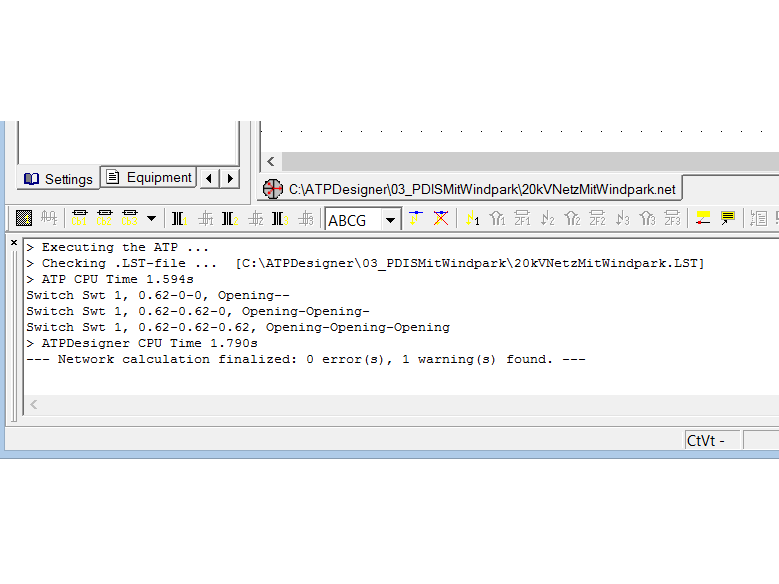

A right-mouse button menu of the Messages Window is also available

• Remove all errors and messages
• Change font
• Copy errors and messages to the clipboard
